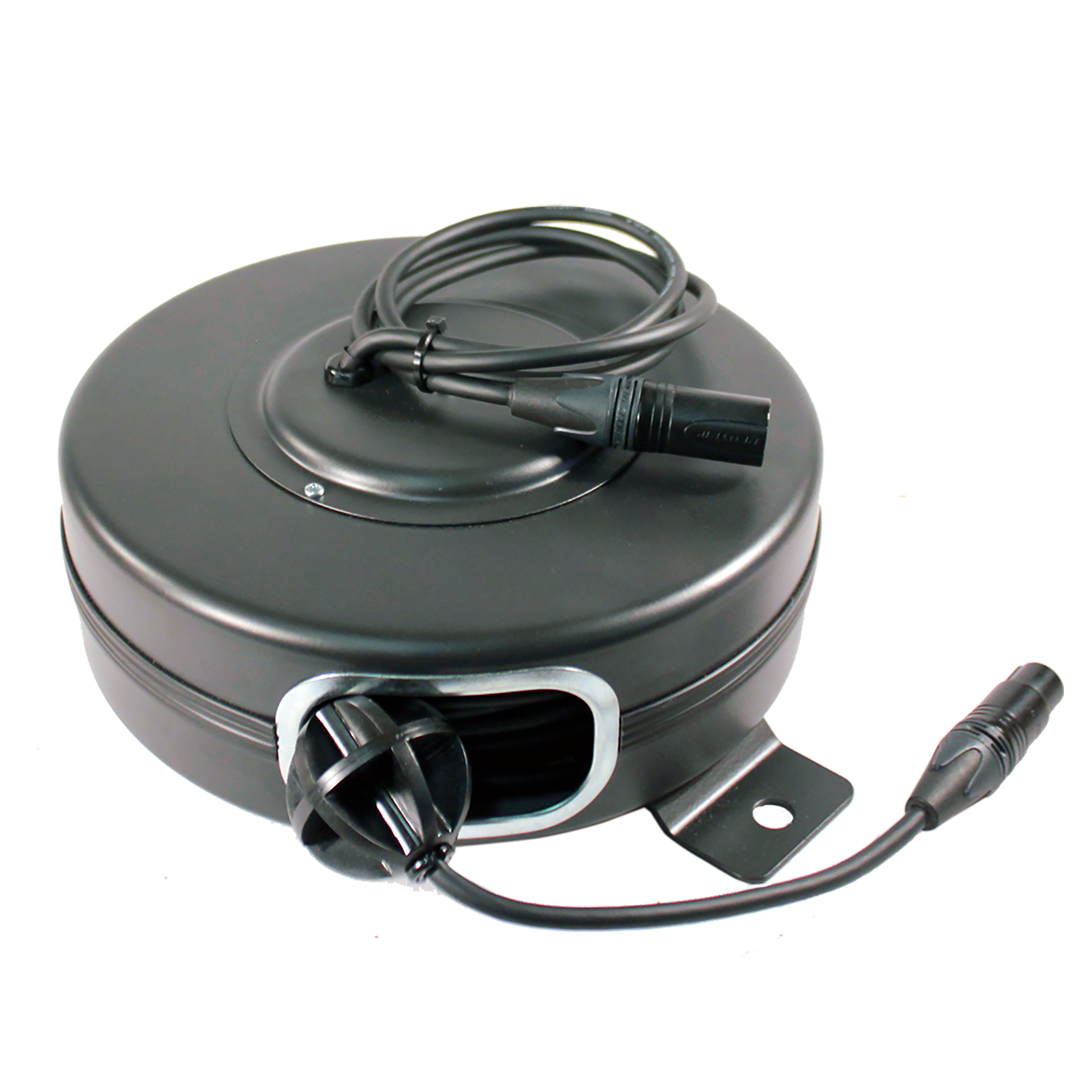

[ DMX-40-S ] Stage Ninja® 40 Foot Retractable Female DMX Cable Reel
-
-
DMX-40-S
Click PDF Icon for Spec Sheet Premium DMX cable with genuine 5-pin Neutrik® DMX connectors. Pull cable to desired length (it locks in place); give the cable another pull to unlock. Cable instantly retracts into protective housing. The retractable end is 40 feet with Neutrik 5-pin DMX female connector. The static end is 6 feet with Neutrik 5-pin DMX male connector. The durable powder coated steel housing comes standard with a flat mounting strap that can be fastened to a desktop, cabinet, or rack mount. A vertical mounting bracket kit is available. Constant tension is available upon request. Eliminates cord winding, cord tangles and stage/workspace clutter with instant cable retraction.
Optional Mounting Bracket Kits

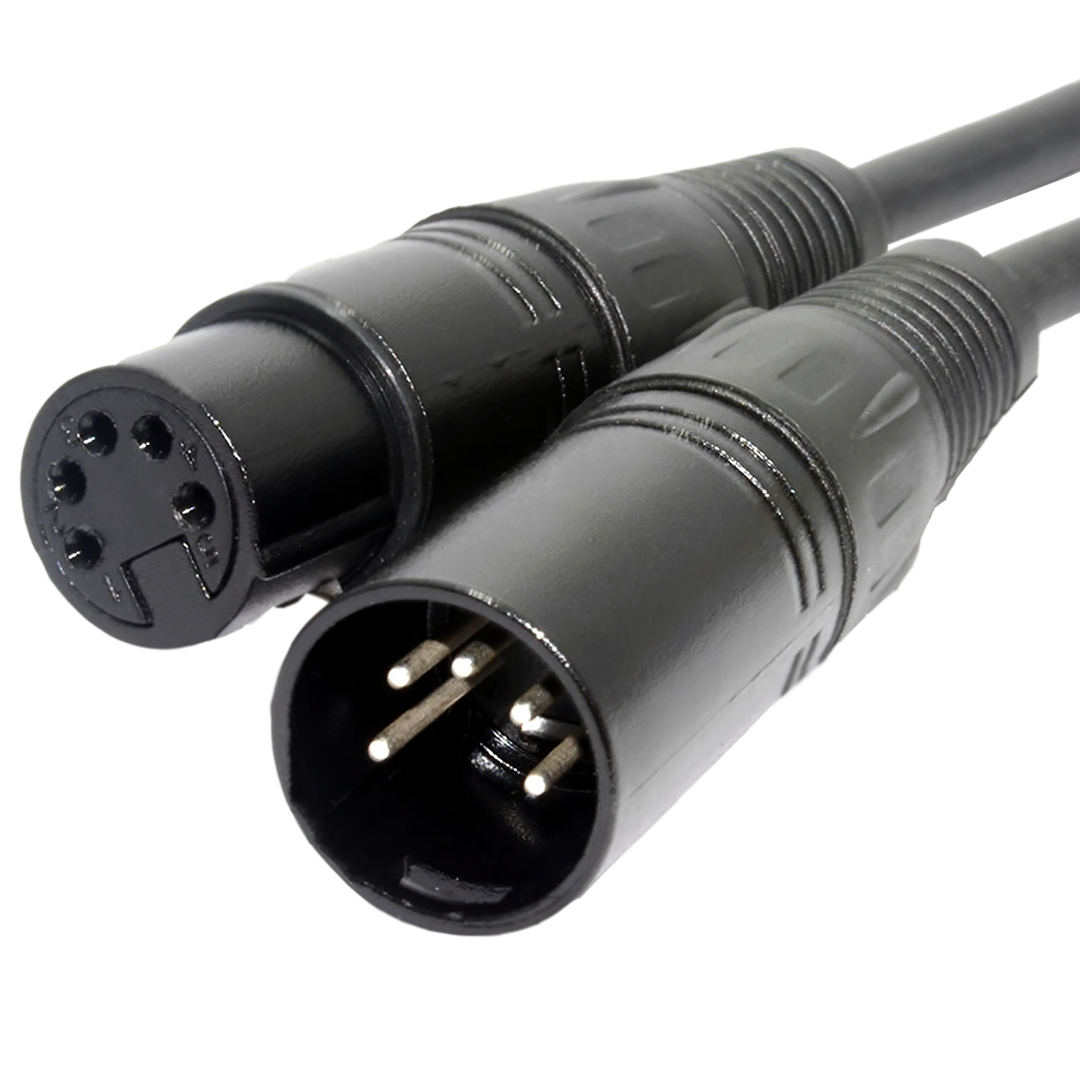

Premium DMX cable with genuine 5-pin Neutrik® DMX connectors
40 foot retractable female end; 6 foot static male end
Durable powder coated steel housing with flat mounting strap

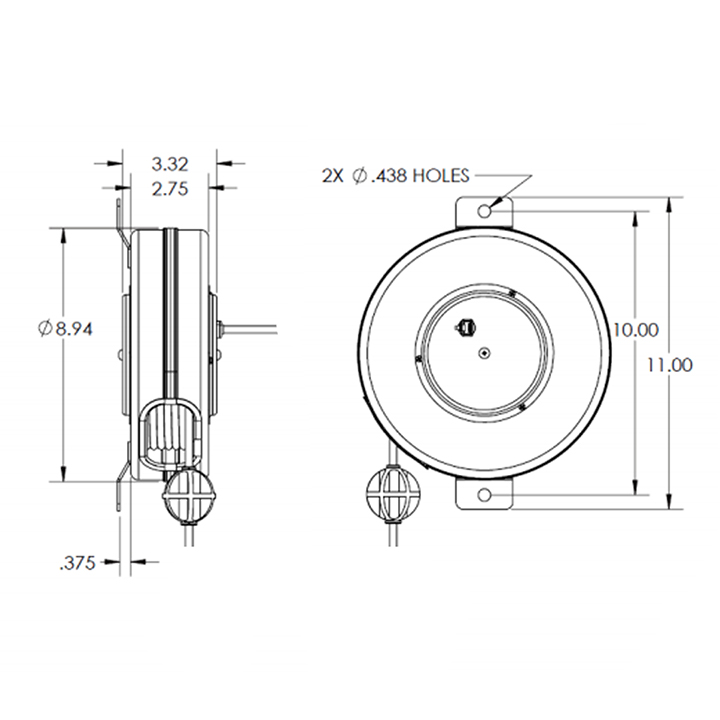

Reel diameter 9 inch
Reel thickness 2.75 inch (3.32 inch with flat bracket)Flat mounting bracket strap is 11 inches
Mounting holes are 0.438 inch diameter

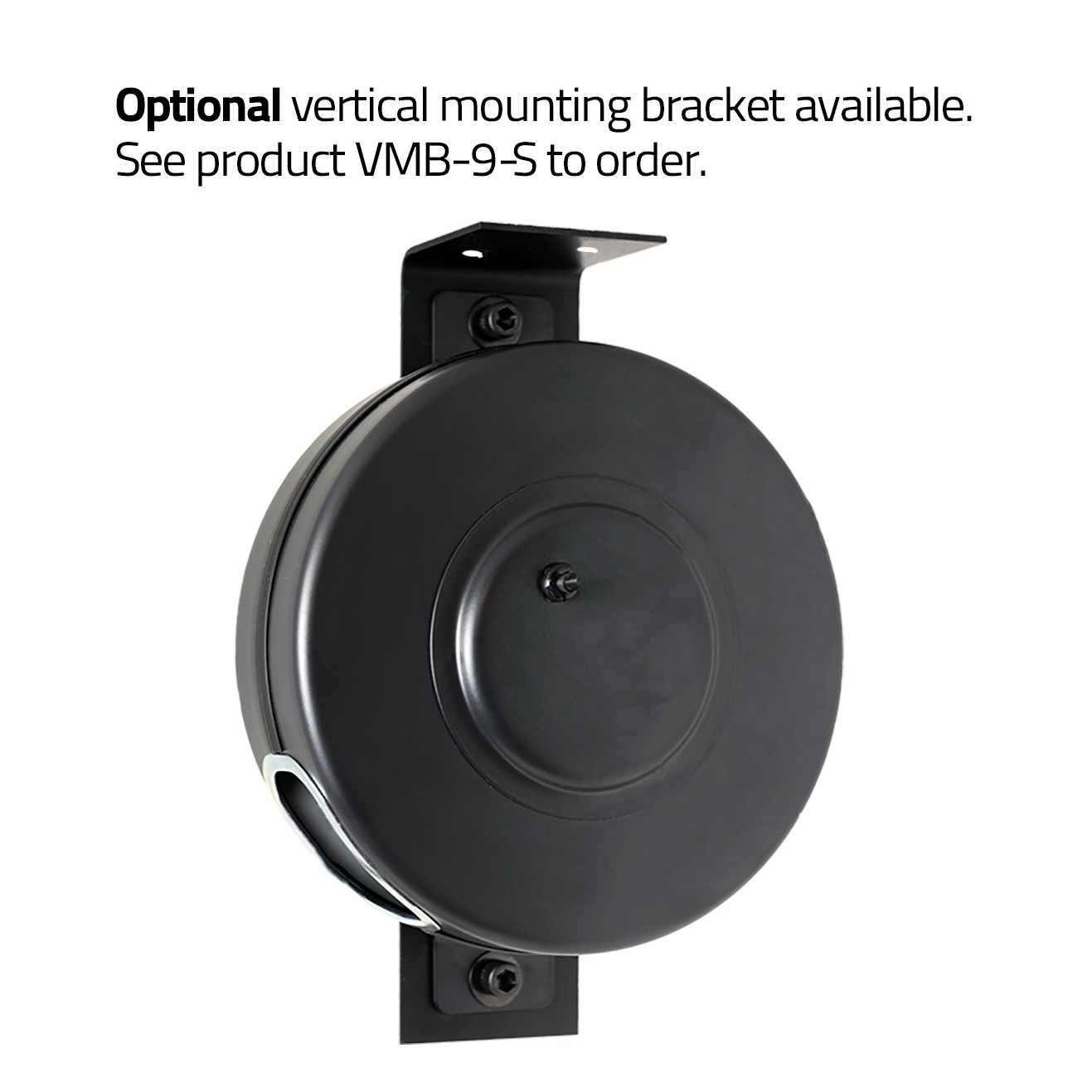

10 inches between mounting holesVertical mounting bracket kits available (part VMB-9-S and VMB-9-SVL)
Pull cable to desired length (it locks in place); give the cable another pull to unlock
Constant tension available on request
Install or use in dry location
