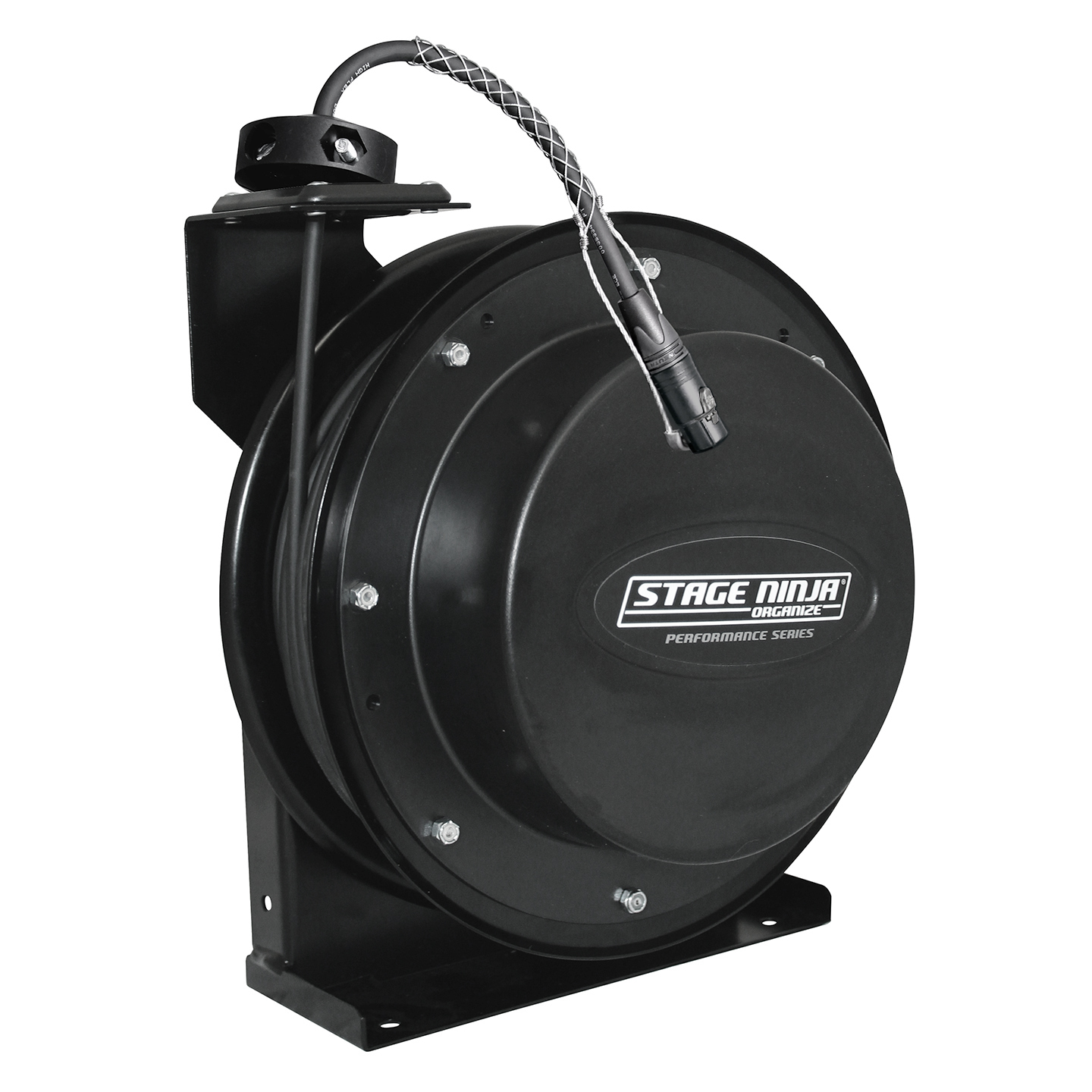

[ DMX-50-CT ] Stage Ninja® Performance Series 50 Foot Constant Tension Retractable Female DMX Cable Reel

  • DMX-50-CT

    Click PDF Icon for Spec Sheet

    Premium 24 AWG DMX 512 cable with genuine Neutrik® 5-pin XLR connectors in an industrial powder coated steel housing with integrated mounting base. Standard model is constant tension* for use with trusses, battens and other moving equipment to control stage lighting. A bus drop grip is installed near the retractable connector to provide strain relief. The retractable end is 50 feet with Neutrik female XLR 5-pin connector. The static end is 3 feet with Neutrik male XLR 5-pin connector. (*Available as Locking/Releasing for stage floor, AV carts, etc.): Pull cable to desired length (it locks in place); give the cable another pull to unlock and instantly retract. Eliminates cord winding, cord tangles and stage/workspace clutter. Call to discuss.)

    >>> Find an authorized dealer <<<

    Premium 24 AWG 2-pair DMX 512 cable

    Genuine Neutrik® 5-pin XLR connectors

    50 foot retractable female end; 3 foot static male end

    Constant Tension with feed arm positioned for reel to be ceiling mounted with cable pulling down*

    Bus drop grip installed near retractable connector end for strain relief

    Durable powder coated industrial steel housing with integrated mounting base

    Industrial spring motor for strong retraction with a 10,000 cycle rating**

    Reel dimensions are 13″H x 12″D x 9.5″W *Custom options available like locking/releasing, other feed arm configurations (for attic or catwalk floor, AV carts, etc.). Call to discuss.

    ** Cycle = 1 full deployment and retraction

    Custom lengths available here.
