[ MED-10-IEC ] Stage Ninja® 10 Foot Medical Environment Retractable Reel with Static IEC Female Tap

  • VMB-7-S VMB-7-S
    AM7.5 AM7.5
  • MED-10-IEC

    Adobe_PDF_file_icon_32x32
    Click PDF Icon for Spec Sheet

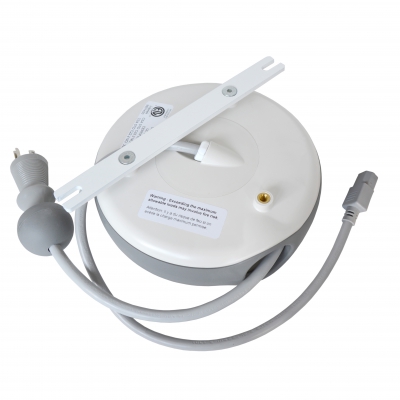

    Durable 14/3 retractable power cable with 5-15P antimicrobial hospital grade plug in housing with antimicrobial agent. Static end is 16/3 power cable with a single IEC 320 C-13 female tap. Pull cable to desired length (it locks in place); give the cable another pull to unlock. Cable instantly retracts into protective housing. This reel meets standard UL 60601-1 and has a maximum power of 10 amps and 125 volt rating. The durable high impact plastic housing is molded with a permanent antimicrobial additive and comes standard with a flat mounting strap that can be fastened to a horizontal surface like a cabinet, or rack mount. A vertical mounting bracket kit is available. Eliminates cord winding, cord tangles and trip hazards with instant cable retraction. This is an excellent reel for sterile, mobile applications.

    MedicalCart

    Durable high impact plastic housing molded with a permanent antimicrobial additive

    Reel diameter 7.5 inch
    Reel thickness 2.85 inch

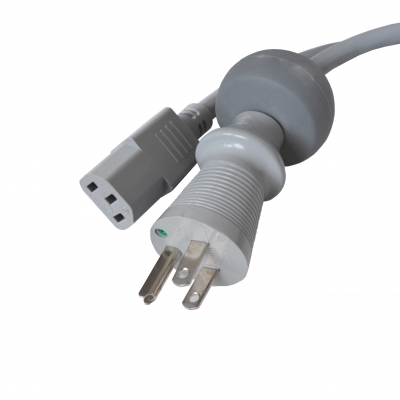

    10 foot 14/3 SJT retractable end with NEMA 5-15P hospital grade antimicrobial plug and ball stop; 18 inch 16/3 SJT static end with IEC 320 C-13 female tap

    Included flat mounting bracket strap is 9 inches
    Mounting holes are 0.27 inch diameter
    7.77 inches between mounting holes

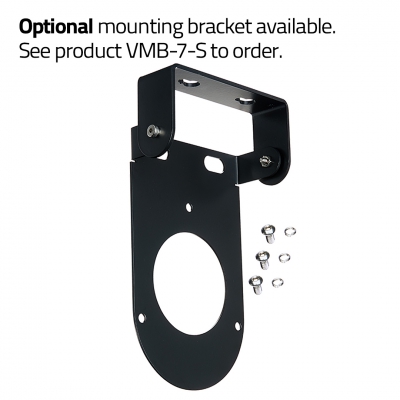

    Vertical mounting bracket kit available (part VMB-7-S)

    Pull cable to desired length (it locks in place); give the cable another pull to unlock

    Install or use in dry location

    Up to 15’ length available with smaller wire size.
