[ XLR-48-S ] Stage Ninja® 42 Foot Retractable Female XLR Cable Reel

  • VMB-9-S VMB-9-S
    AM9 AM9
  • XLR-48-S

    Click PDF Icon for Spec Sheet

    Premium 22 AWG XLR cable with genuine Neutrik® 3-pin XLR connectors. Pull cable to desired length (it locks in place); give the cable another pull to unlock. Cable instantly retracts into protective housing. The durable powder coated steel housing comes standard with a flat mounting strap that can be fastened to a horizontal surface like a cabinet, or rack mount. A vertical mounting bracket kit is available. The retractable end is 42 feet with Neutrik female XLR connector. The static end is 6 feet with Neutrik male XLR connector. Constant tension is available upon request. Eliminates cord winding, cord tangles and stage/workspace clutter with instant cable retraction.

    Optional Mounting Bracket Kits


    Premium 22 AWG shielded cable

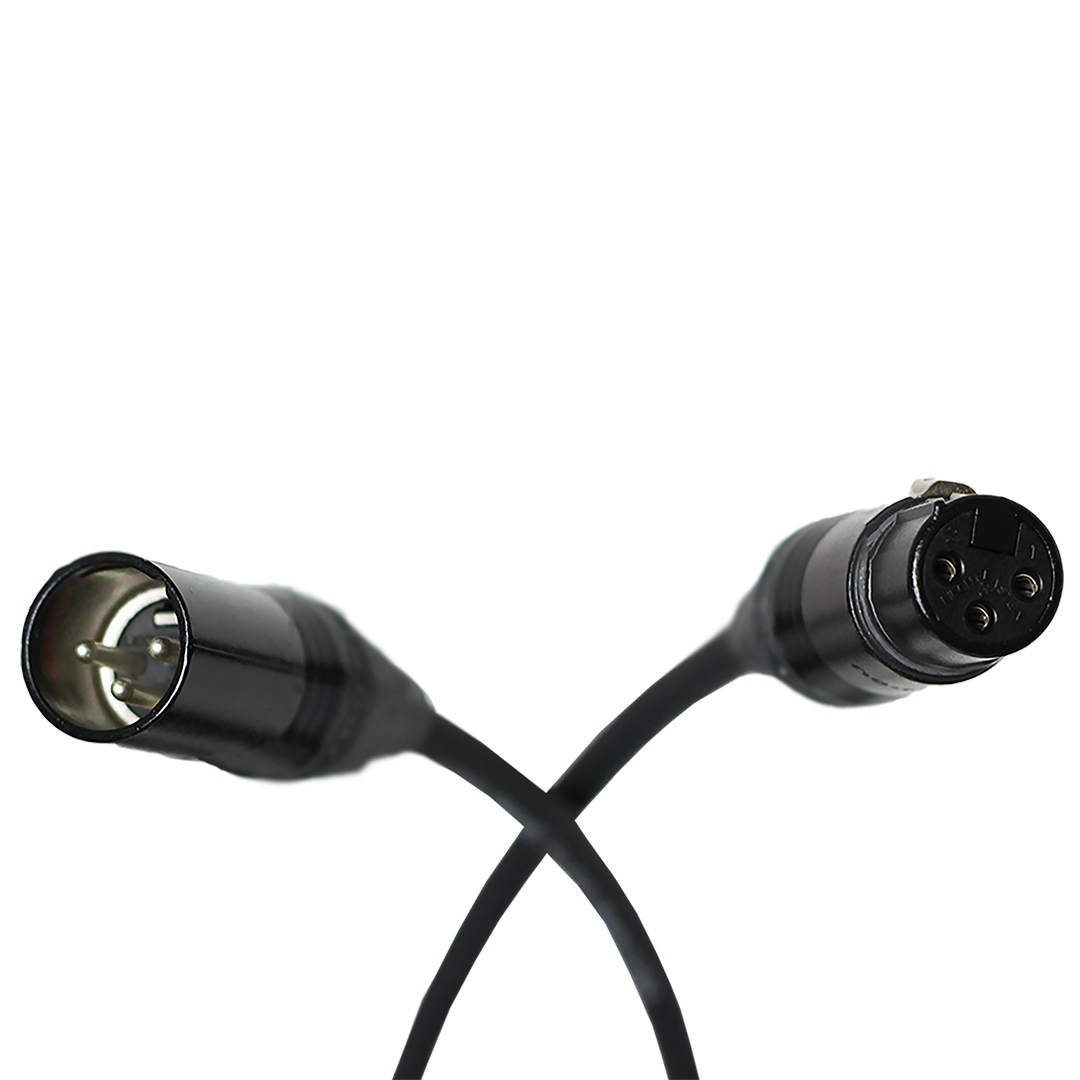

    Genuine Neutrik® 3-pin XLR connectors

    42 foot retractable female end; 6 foot static male end

    Durable powder coated steel housing with flat mounting strap

    Reel diameter 9 inch
    Reel thickness 2.75 inch (3.32 inch with flat bracket)

    Flat mounting bracket strap is 11 inches
    Mounting holes are 0.438 inch diameter
    10 inches between mounting holes

    Vertical mounting bracket kits available (part VMB-9-S and VMB-9-SVL)

    Pull cable to desired length (it locks in place); give the cable another pull to unlock

    Constant tension available on request

    Install or use in dry location

    Custom lengths available here.
