[ STX-75-3 ] Stage Ninja® 75 Foot Retractable Triple Tap 14/3 Power Reel

  • STX-75-3

    Adobe_PDF_file_icon_32x32
    Click PDF Icon for Spec Sheet

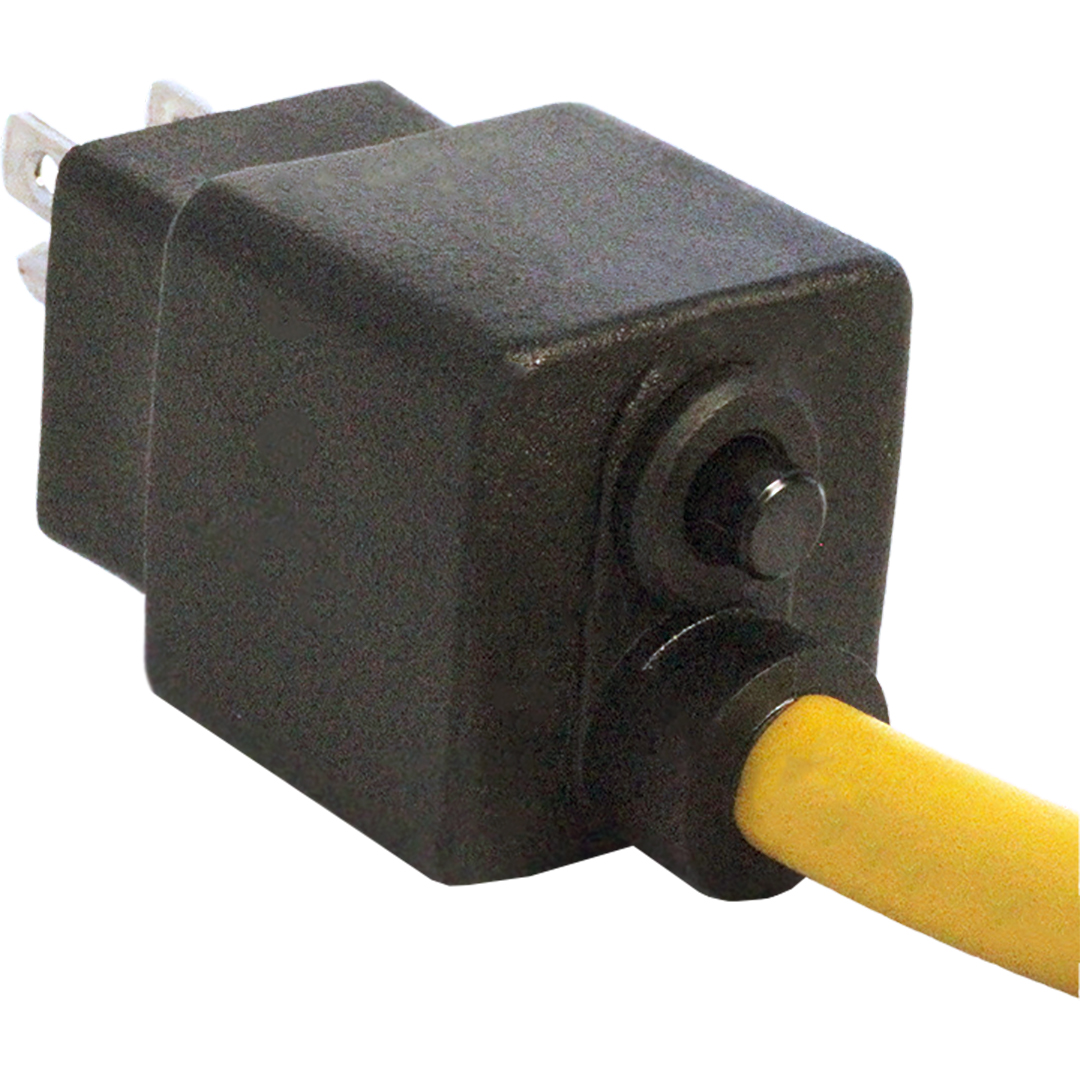

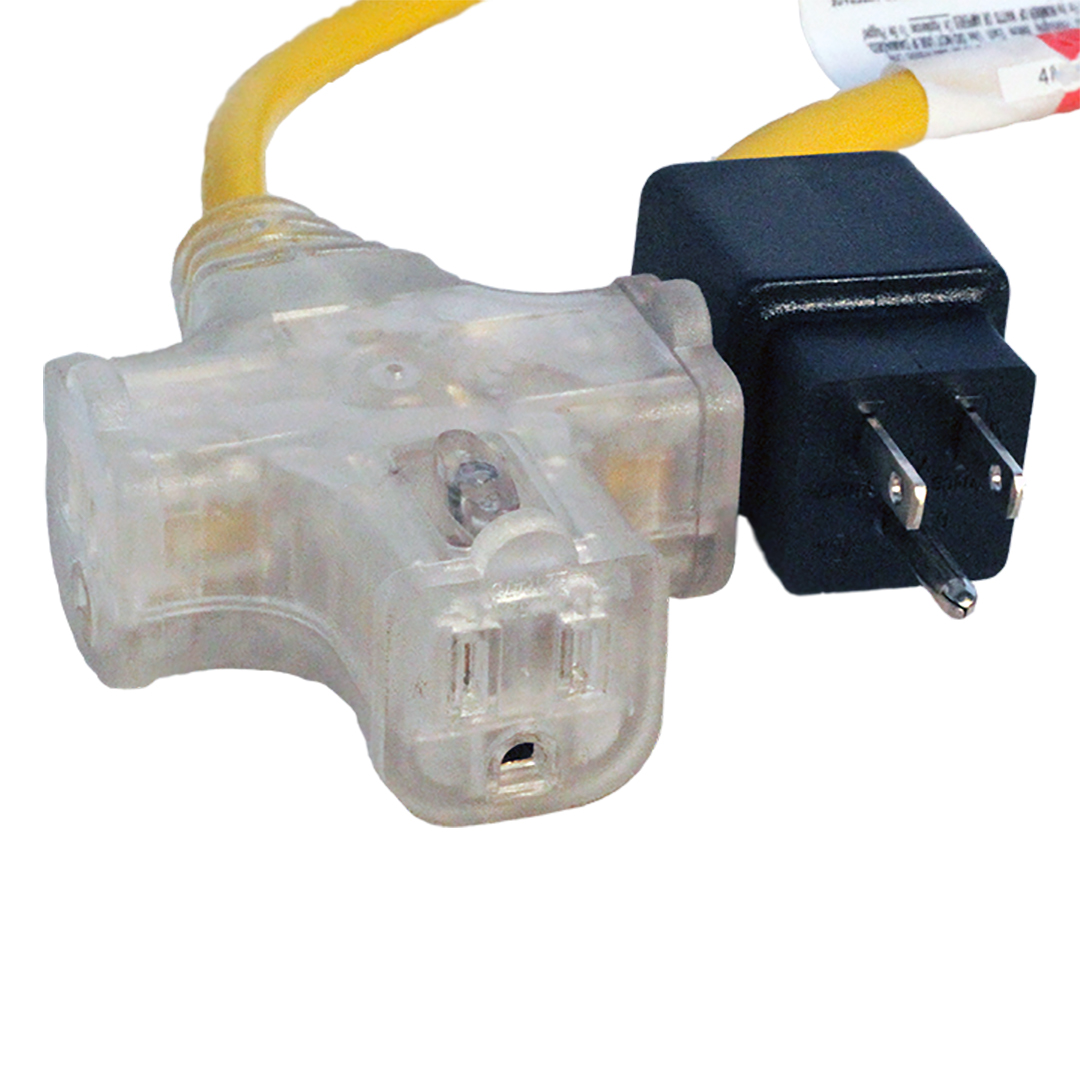

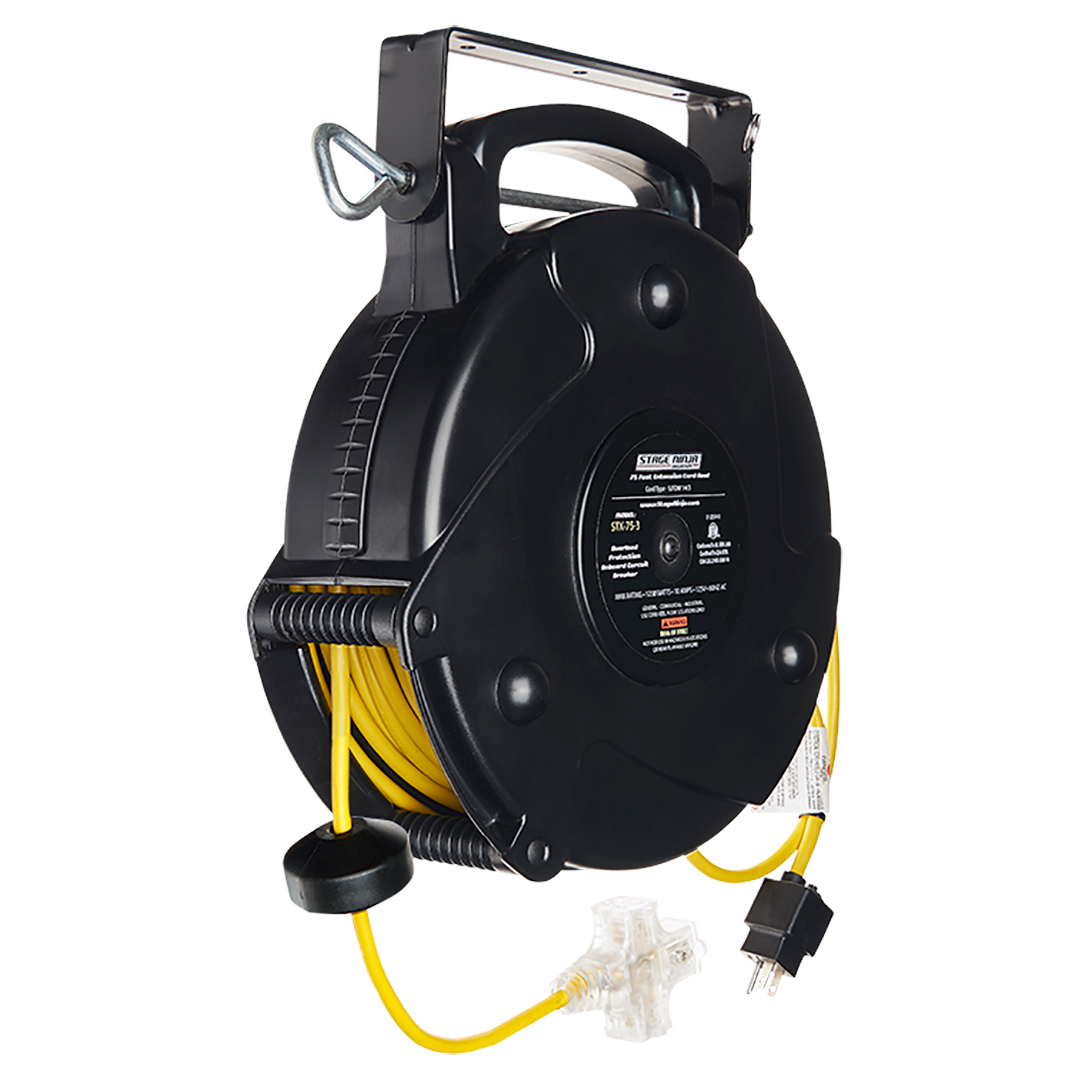

    Durable 14/3 power cable reel with over molded connectors for longer life. Pull cable to desired length (it locks in place); give the cable another pull to unlock. Cable instantly retracts into protective housing. The retractable cord is 75 feet 3 tap female end with locking center tap & LED light to indicate power. The static male end is 3 feet with a 10 amp on-board circuit breaker. The durable, industrial grade thermoplastic housing has integrated carrying handle and optional included swivel mounting bracket. This particular reel is drop tested at 6 feet.

    Black durable, industrial grade thermoplastic housing with integrated carrying handle

    High tension lock and release mechanism

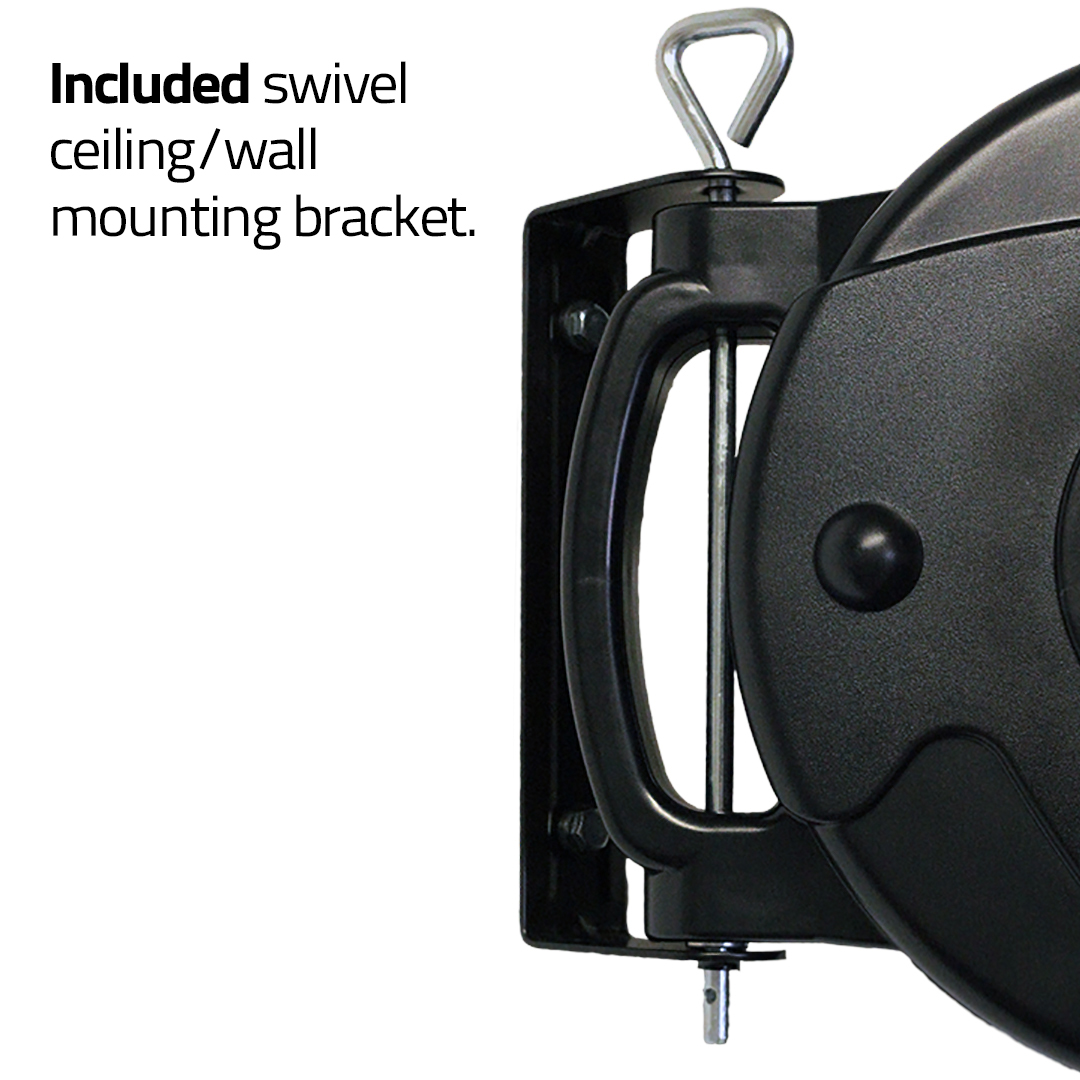

    Swivel wall or ceiling mounting bracket included

    65 foot retractable 4 tap female end with 15 amp on board circuit breaker & LED light to indicate power; 3 foot static male end

    1875 watts 125 volts 15 amps

    Reel diameter 11.25 inches
    Reel thickness 3.75 inches
    Reel diameter plus handle 13.25 inches
    Total hanging length in bracket 15 inches

    Install or use in dry location

    Custom solutions available here.
